PHOENIX SHELTER
The PHOENIX shelter is the most recent Texabri creation.
Its design is based on parallel arches attached to a frame of steel (or grooved) crossbars allowing to collect rainwater, which makes it infinitely adjustable and a perfect extension for existing buildings.
Specifications

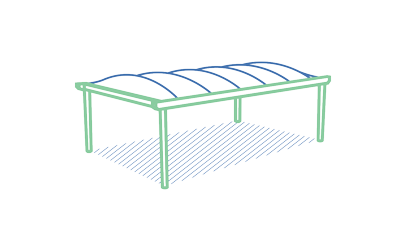

| Square | Round | H-shaped | Curved profile option |
Tilted profile option |
Powder-coated option |
|
|---|---|---|---|---|---|---|

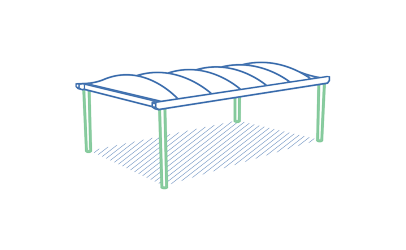

| POSTS | v | v | v | v | v | v |
| BEAMS | – | – | v | v | v | v |
| 4 posts | 2 offset posts |
2 posts, T set-up |
Rainwater drainage |
Foam-protected en option |
Metal-protected option |
|---|---|---|---|---|---|
| v | v | v | v | v | v |

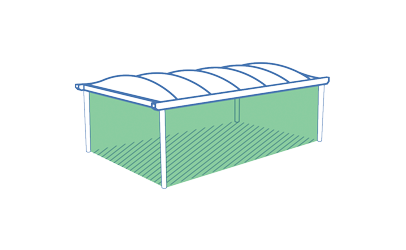

| Partially attached |
Attached along entire height |
Doors | Removable along entire height |
|
|---|---|---|---|---|
| Soft | v | v | v | v |
| Hard panel | v | v | v | v |

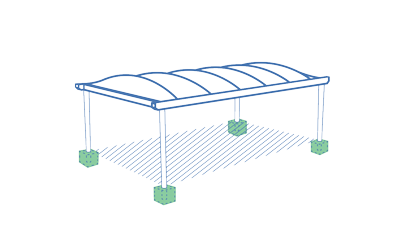

| Concrete blocks | Concrete slabs | Wall mounting | Anchoring | Ballasting |
|---|---|---|---|---|
| v | – | v | v | – |

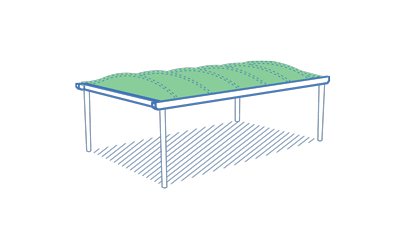

| Texabri (12 colours) |
Serge Ferrari (40 colours) |
Saint-Clair Textiles (40 colours) |
Signage option |
Photovoltaic option |
|---|---|---|---|---|
| – | v | v | v | v |

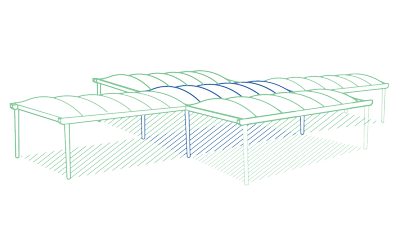

| Juxtaposition of shelters | On 1 to 4 sides |
| Connecting to buildings | On 1 to 4 sides |
Applications
The PHOENIX model
APPLICATION #2
SPORTS FIELD
Project for multi-sports field
for the city of Montreuil
