ORION SHELTER
For several years now schools have often chosen the ORION shelter to cover their school playgrounds, because of the facility of adding dividers and its capacity of connecting it with buildings.
Specifications
| Square | Round | H-shaped | Curved profile option |
Tilted profile option |
Powder-coated option |
|
|---|---|---|---|---|---|---|

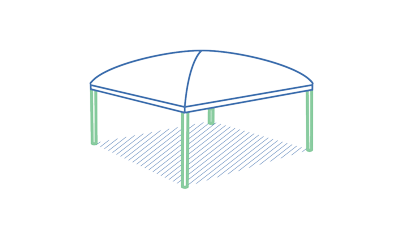

| POSTS | v | v | – | – | – | v |

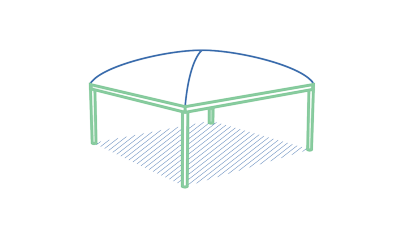

| BEAMS | v | v | – | – | – | v |
| 4 posts | 2 offset posts |
2 T-shaped posts |
Rainwater drainage |
Foam-protected option |
Metal-protected option |
|---|---|---|---|---|---|
| v | v (up to 5 m) |
v | v | v | v |
| Partially attached |
Attached along entire height |
Doors | Removable along entire height |
|
|---|---|---|---|---|

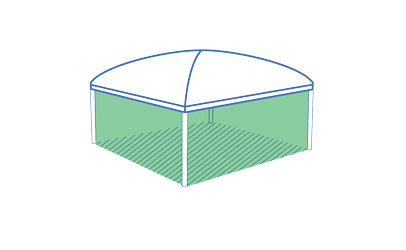

| Soft | 4 sides | 4 sides | 4 sides | 4 sides |
| Hard panel | 4 sides | 4 sides | 4 sides | 4 sides |

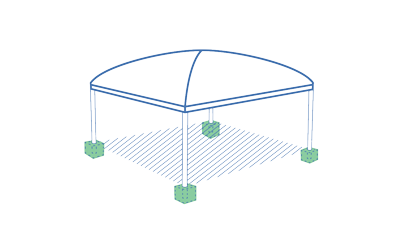

| Concrete blocks | Concrete slabs | Wall mounting | Anchoring | Ballasting |
|---|---|---|---|---|
| v | v | v | v | – |

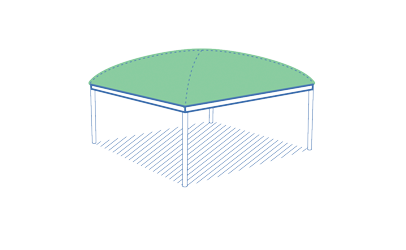

| Texabri (12 colours) |
Serge Ferrari (40 colours) |
Saint-Clair Textiles (40 colours) |
Signage option |
Photovoltaic option |
|---|---|---|---|---|
| – | v | v | – | – |
| Juxtaposition of shelters | On 1 to 4 sides |
| Connecting to buildings | On 1 to 4 sides |
Applications
